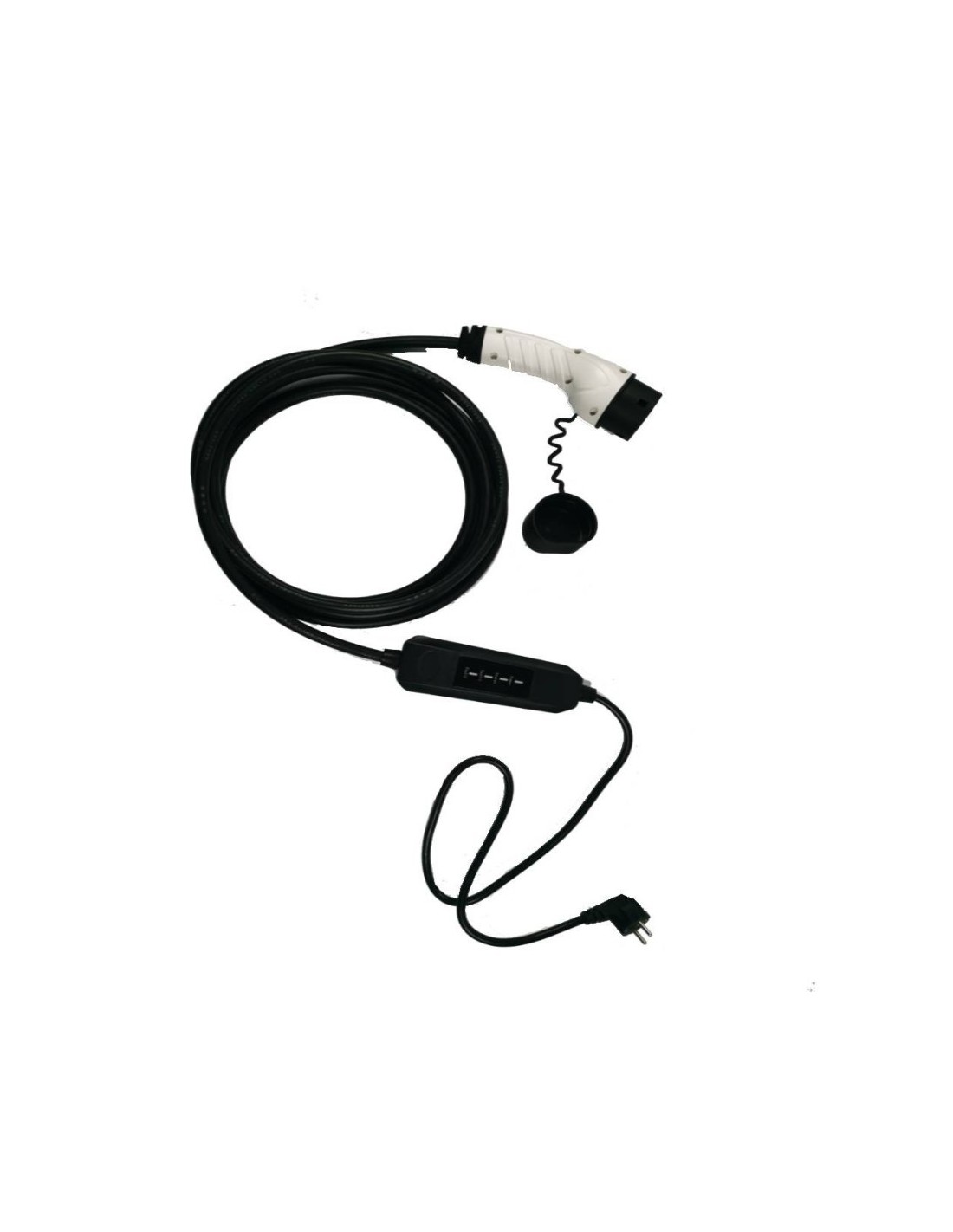

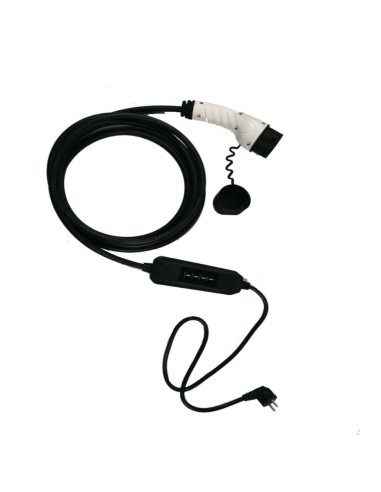

Câble de chargeur EV portable de type 2 Shuko Mannekes (norme européenne, charge rapide)

2107050-R1012

Description

Charging cable Technical Parameter List Of Model-2
Technical Parameter
ITEM UNIT EN JIS
Charging cable type / Mode 2
Power plug type / EN JIS
Rated working voltage V 220 110
Rated working current A 16
PWM signal amplitude V 12
PWM frequency HZ 1000
Working temperature -20~50
Working humidity %RH 5~95
Protection function overcurrent protection A ≤15.6
overvoltage protection V 250 140
undervoltage protection V 175 90
leakage protection mA 30mA AC+6mA DC
ungrounded protection / real-time detection
over temperature protection ≥80
Insulation resistance(DC 500V) ON 10
Functional resistance Ω 680±3%
Withstand voltage V 2000
Insertion force of Charging cable N <100
Mechancial life of Charging cable time 10000
Fire retardant rating of Charging cable / UL94-V0
Waterproof grade / IP54
Pls note: actual waterproof grade of this type cable can reach IP65.

Détails du produit

Modèle
Light Carga Rápida
Mini
Marge
10
